اسپیکر | باند اکتیو ال دی LD ICOA 12 A BT
A genuine all-rounder for full-range, satellite and monitor applications
126 dB max. SPL and 1200 W peak power

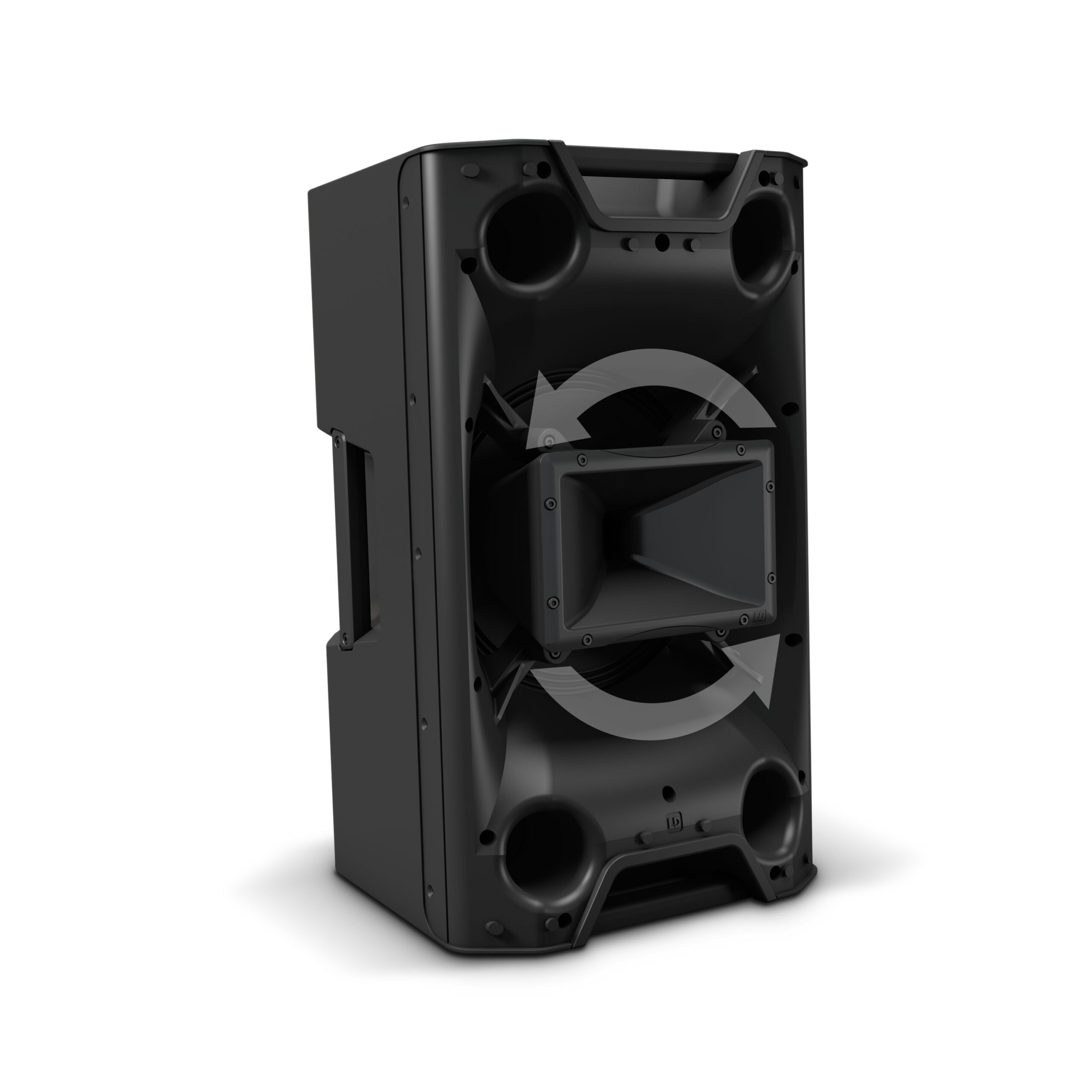

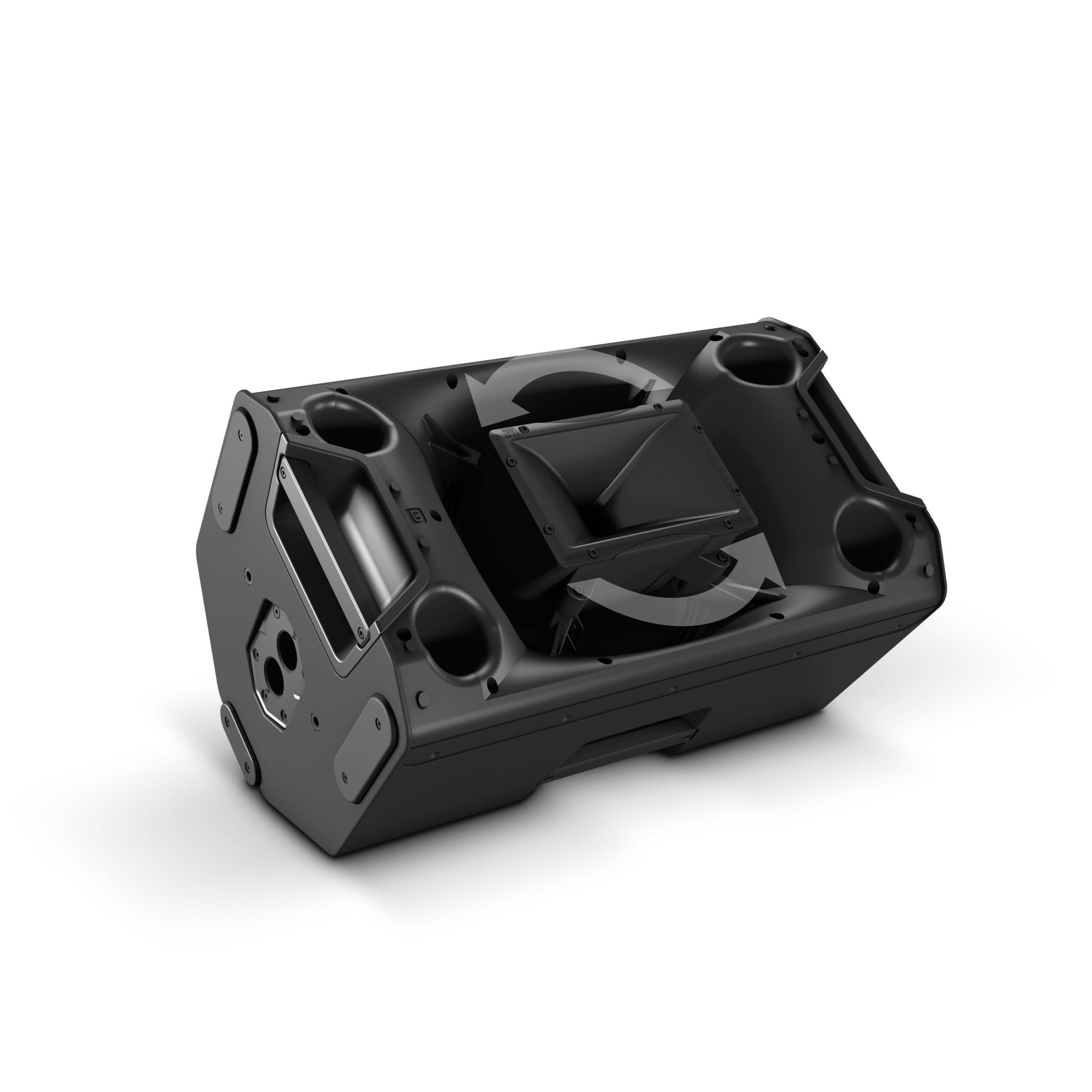

Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimised CD horn (Patent pending)
Horn-loaded woofer
DynX DSP with 4 presets, 3-band EQ and delay function
2 line/mic input channels with individual gain controllers plus mono mix output; Bluetooth® streaming with the BT model

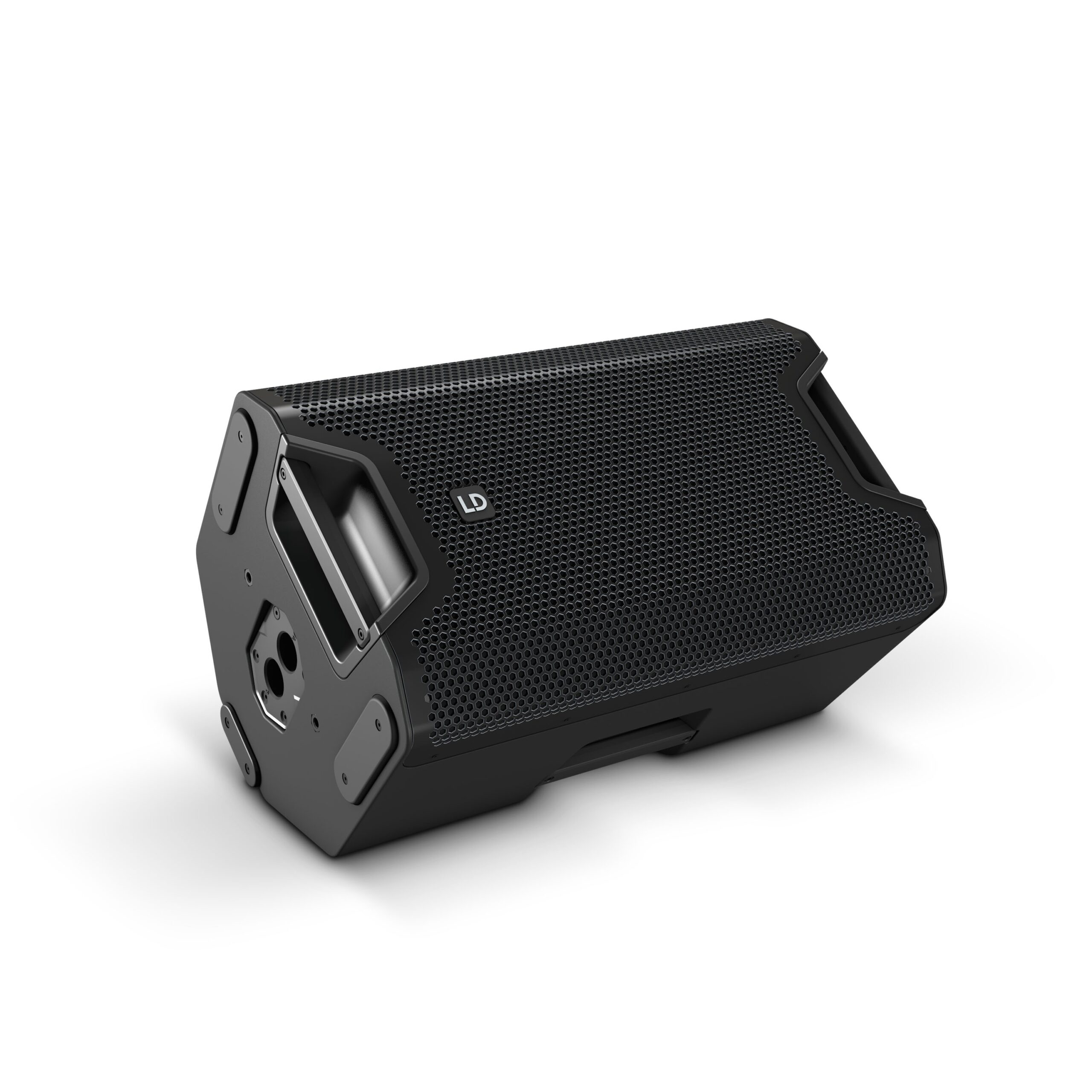

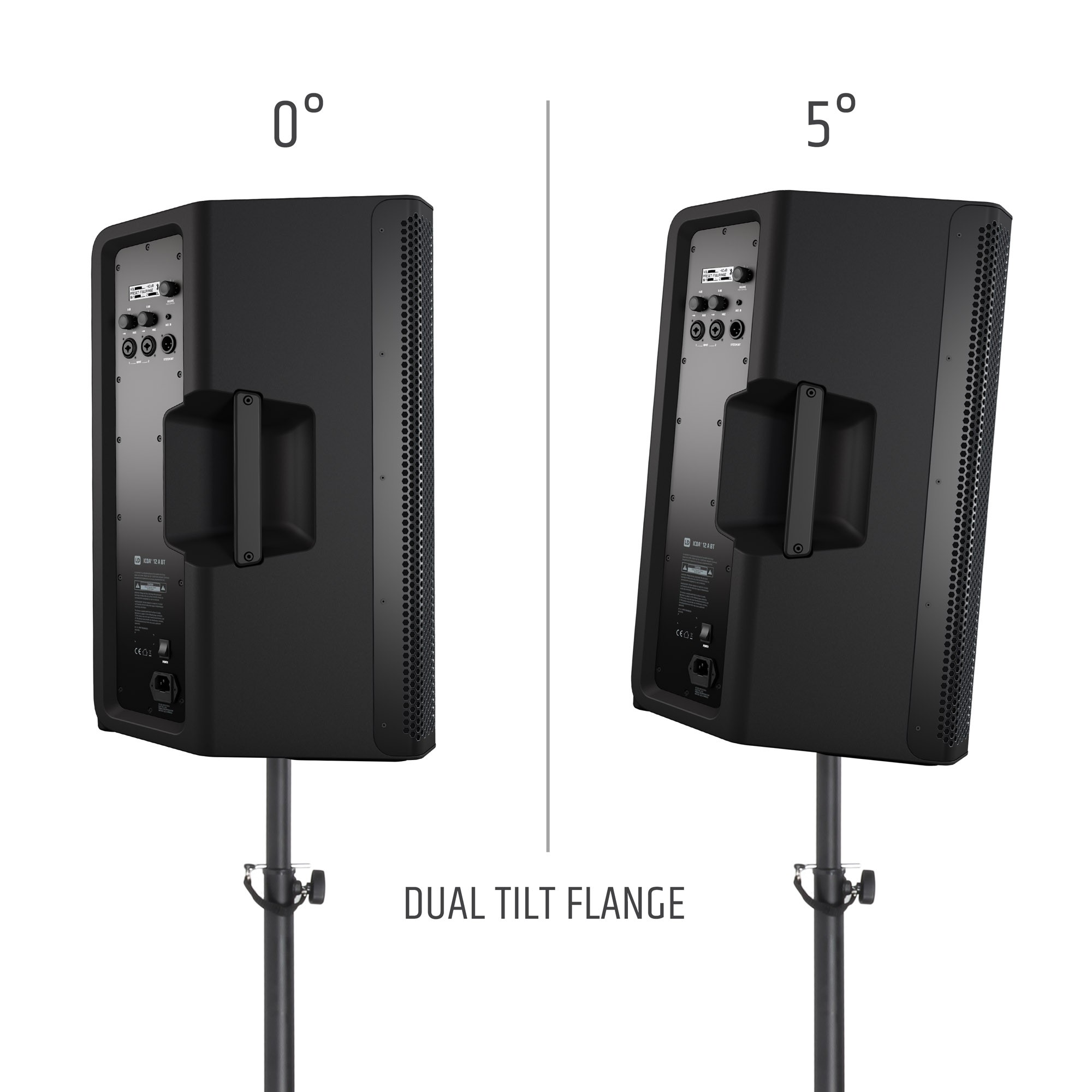

36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand
6 x M10 flying points

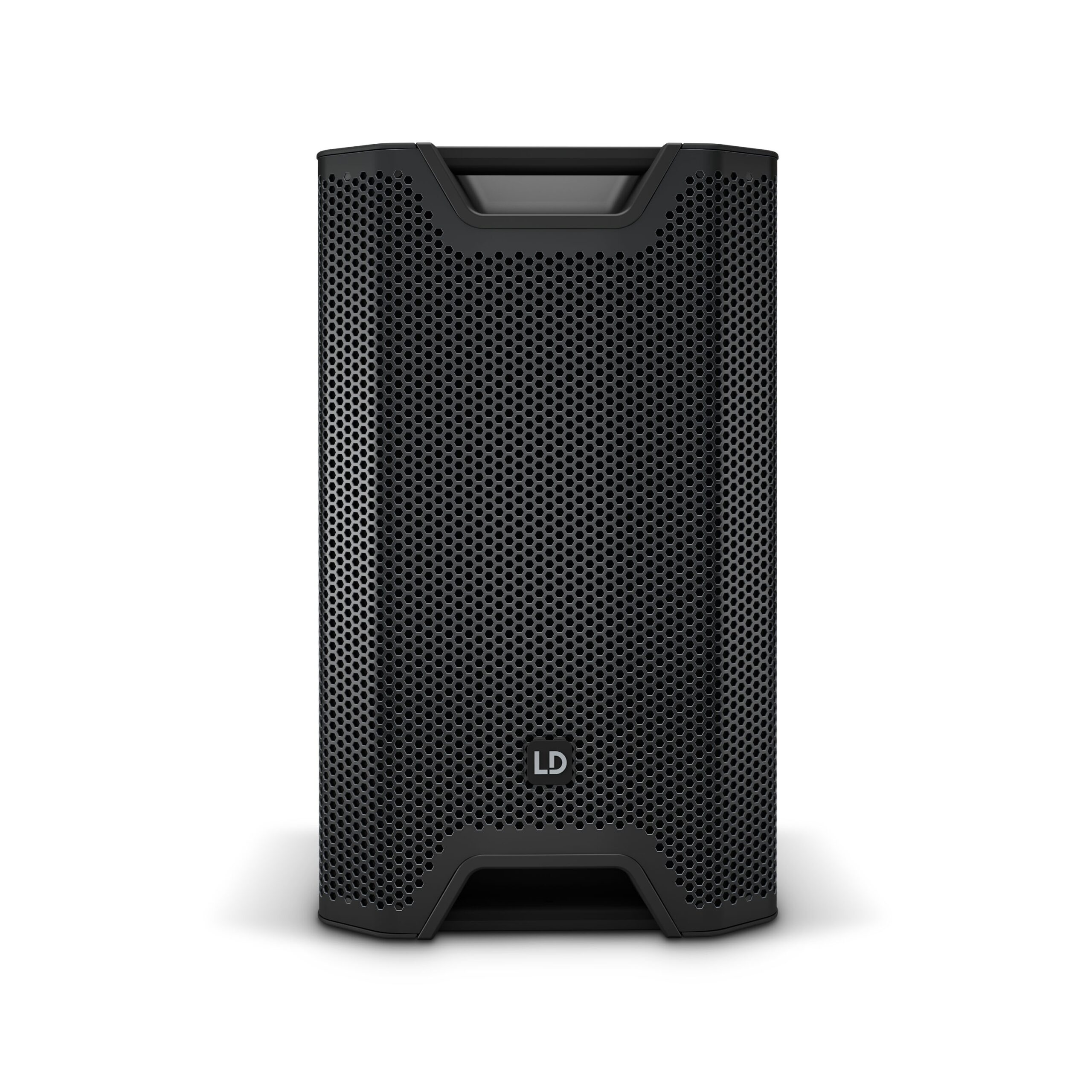

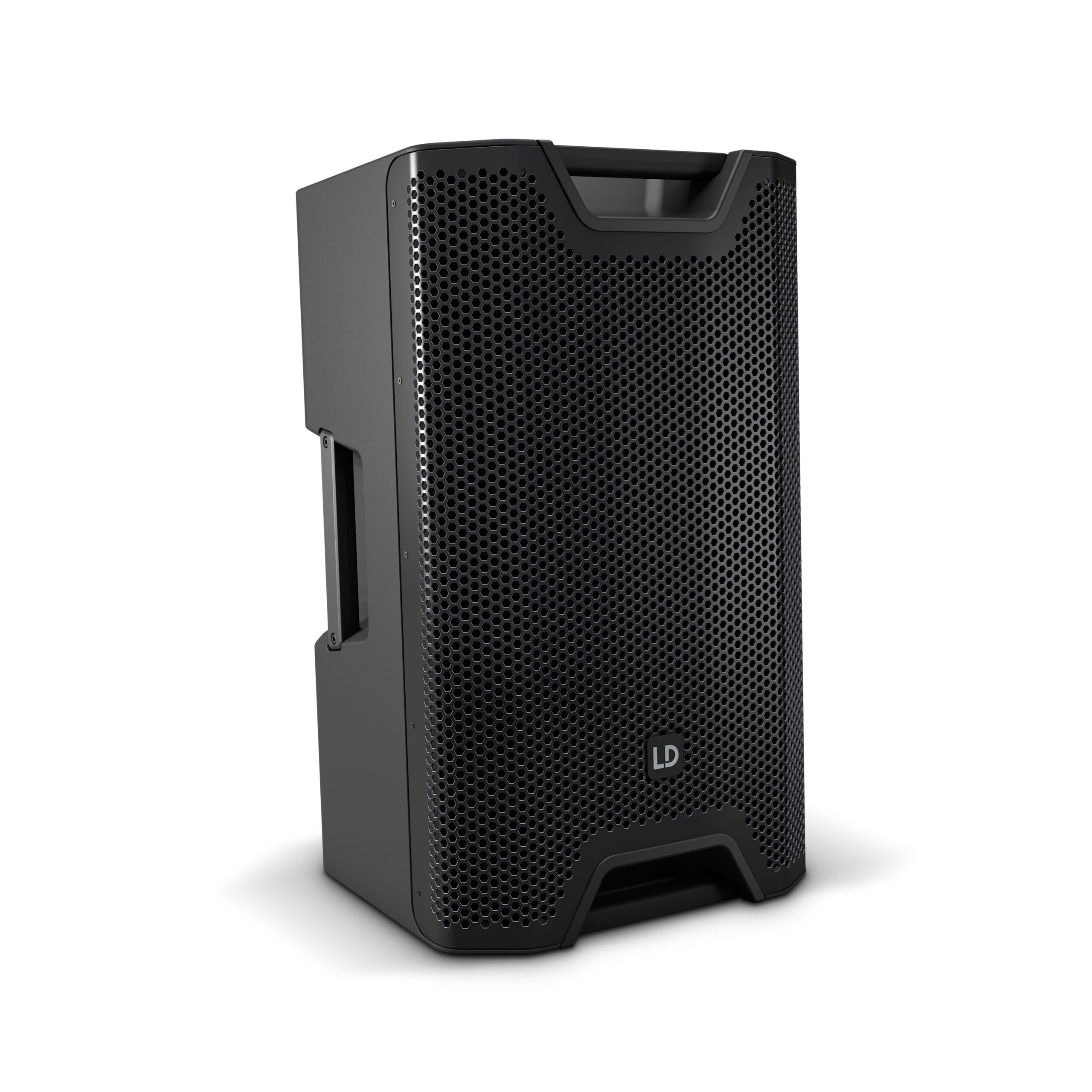

Shock-resistant front grille for optimal protection of the speaker
4 aluminium grips with ergonomic, rubber surface
Extensive, optionally available accessories for installation and transport
General
| Product type | PA loudspeaker |
| Type | Powered |
| Bluetooth Audio Decoder | Bluetooth 4.0 |
| Low/mid Woofer dimensions | 12 “ |
| Woofer dimensions (mm) | 304.8 mm |
| Woofer magnet | Ferrite |
| Woofer brand | Custom-made |
| Horn | BEM optimized CD Horn |
| HF driver dimensions | 1 “ |
| HF driver dimention (mm) | 25.4 mm |
| HF driver magnet | Ferrite |
| HF driver brand | Custom-made |
| HF driver voice coil | 1.4 “ |
| HF driver voice coil | 35 mm |
| Amplifier | Class D |
| Dispersion (H x V) | 90° x 50° |
| System Power (RMS) | 300 W |
| Peak power | 1200 W |
| Frequency response | 50 Hz – 20000 Hz |
| Crossover frequency kHz | 2 kHz |
| Max. SPL (Peak) | 126 dB |
| Protection circuits | Multiband limiter, over voltage, over-current, thermal overload |

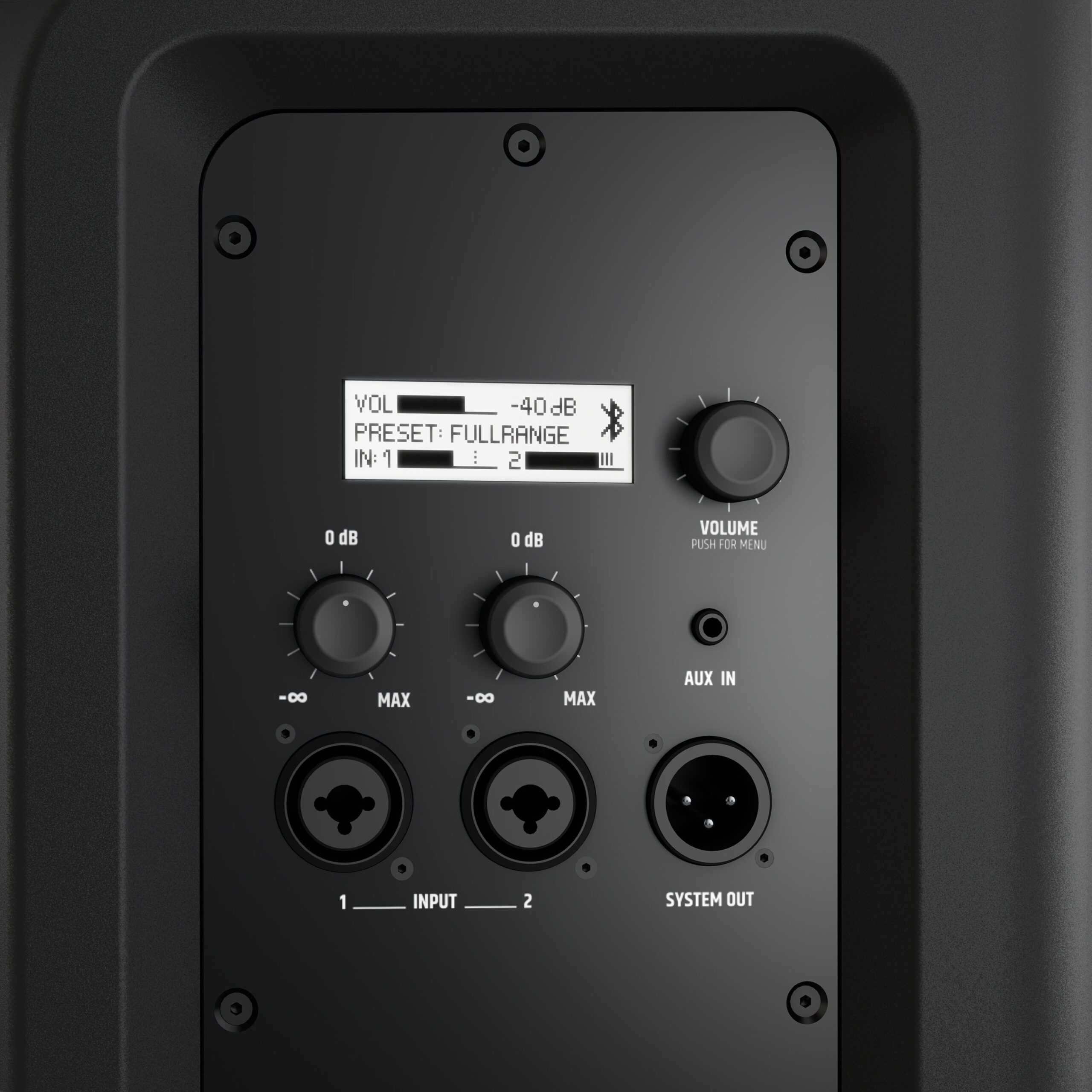

| Controls | 2 x gain, On / off switch, Rotary/push encoder |
| Indicators | LC display |
| Mic/ line inputs | 2 |
| Mic-/ Line Input Connectors | 6.3 mm jack Combination sockets (symmetrical), XLR |
| Line inputs | 1 |
| Line input connectors | 3.5 mm TRS |
| Line outputs | 1 |
| Line output connectors | XLR |
| Operating voltage | SMPS |
| Power consumption | 150 W |
| Ambient temperature (in operation) | 0 – 40 °C |
| Operating voltage | 100 V – 240 V AC / 50 – 60 Hz |
| Relative Humidity | < 80 %, not condensing |
| Fuse | T4AL 250 V |
| Cabinet material | Polypropylene |
| Cabinet construction | Bass Reflex |
| Mounting | 36mm flange (0°, 5°), 6 x M10 flying points |

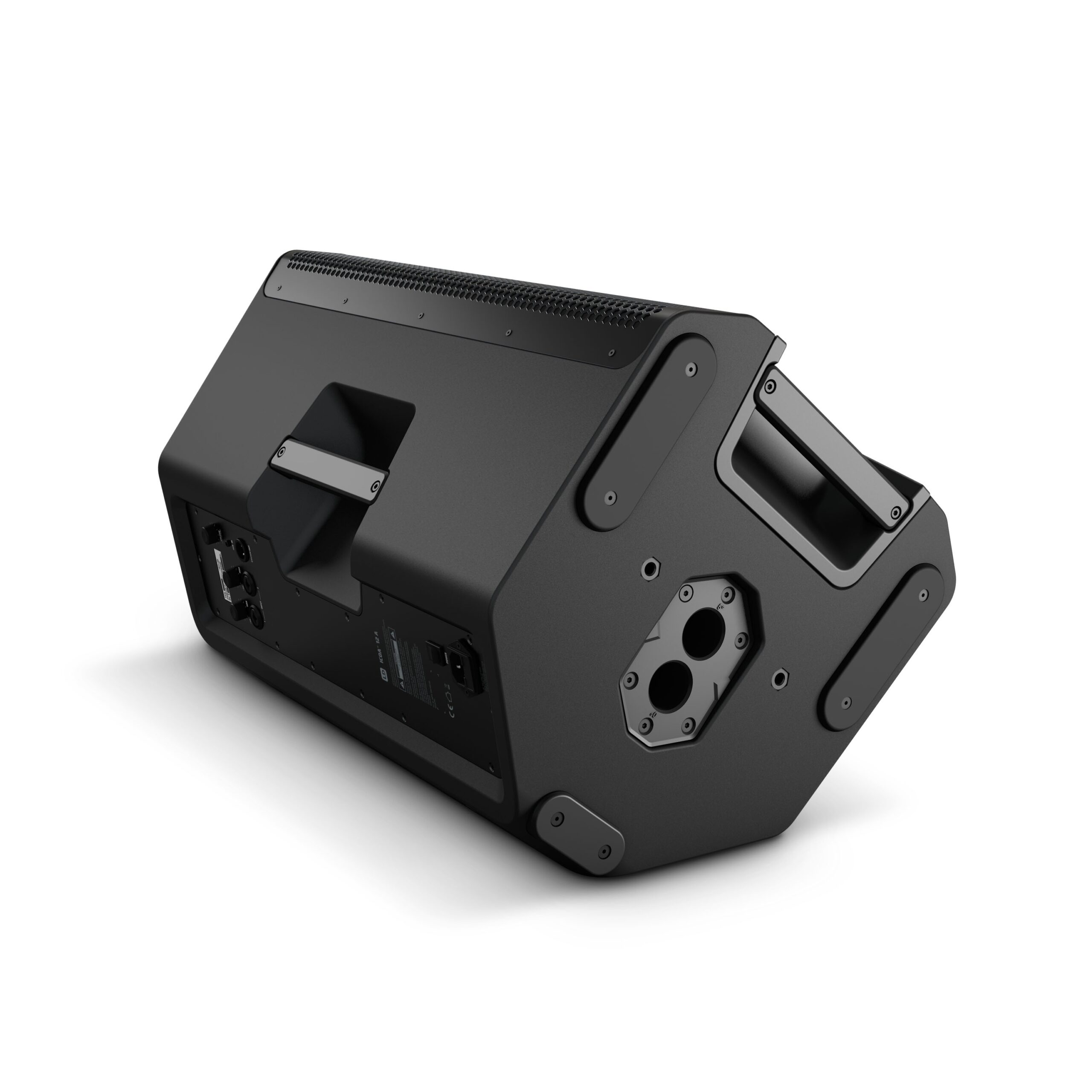

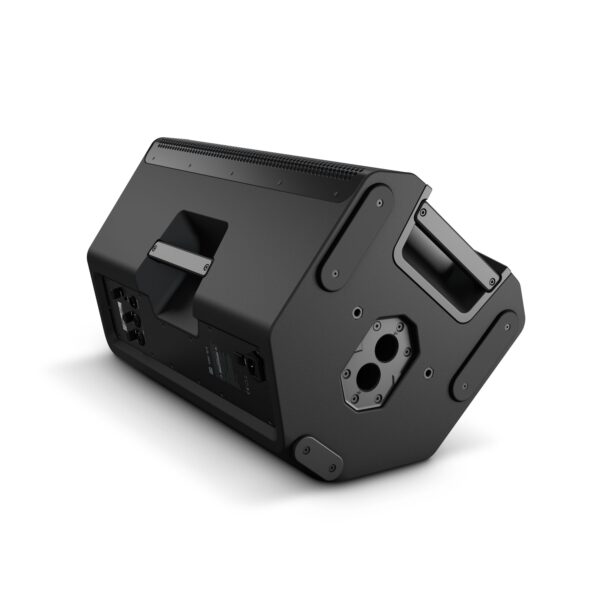

| Monitor angle | 55 ° |
| Width | 375 mm |
| Height | 635 mm |
| Depth | 396 mm |
| Features | Bluetooth |
| Weight | 19,95 kg |
| Accessories (included) | Power cord |
